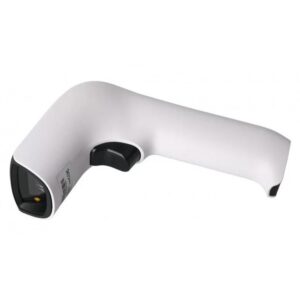

DS6510 is a high-performance stand type 2D bluetooth and wireless 2.4G barcode scanner with leading CMOS image recognition technology.
It can easily read the paper, goods other media barcodes.

  • Απλός σχεδιασμός, χρησιμοποιείται ευρέως στην αποθήκη
  • Διαβάζει εύκολα όλους τους κύριους 1D 2D γραμμωτούς κωδικούς στην αγορά
  • Bluetooth 4.2, έξυπνη αυτόματη σύνδεση όταν είναι εκτός εμβέλειας
  • Η λειτουργία HID, SPP, BLE, συνδέεται με υπολογιστή και κινητό τηλέφωνο
  • Συνεχής χρόνος εργασίας 16 ώρες
  • Χωρητικότητα αποθήκευσης δεδομένων 16MB



  • Simple style design, widely used in warehouses.
  • Read all mainstream 1D, 2D barcodes in the market easily. (5mil)
  • Bluetooth 4.2, intelligent automatic connection when it’s beyond range, not manual setting.
  • HID, SPP, BLE mode, connected with PC, mobile phone easily.
  • Ultra-low power consumption, continuous working time 16h.
  • 16Mb data storage capacity.

Scan Type: CMOS
Light Source: Red Light LED 625±10nm(aim), 5600K LEDs( Lighting)
CPU: 32-bit
Serial Emulation (VCOM)
Resolution: 640*480
Resolution: 1D: 5mil,2D:- 8.7mil @PCS90%
Decoding speed: 25CM/S
Depth of field 5mil:50~130mm,13mil:50~270mm
Scan Mode: Manual ,Auto Sense
Scan angle: Test Conditions: CODE39,10mil/0.25mm, PCS90%
Roll±360°, Pitch±60°, Skew±70°
Print Contrast Signal: 25%
Ambient Light Dark environment, indoor natural light
Wireless communication mode: Synchronization , storage
Wireless transmission distance: 2.4GHz: 150m Bluetooth: 30m (Open distance)
Storage: 16Mb (Over 10,0000 product codes)
Battery capacity: 2200mAh
Battery charging time: About 6.5 hours
Continuous working time: 16 hours

1D: Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT
2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec

Weight: 160g(without cable)
Dimension: 60*115*170mm Scanner
108*135*130mm Stand
Communication Mode: USB,Wireless 2.4G,Wireless Bluetooth 4.2
Interface Type: USB
Power Supply: DC 5V@120mA
Operating temperature: -20C to 55C
Storage temperature: -20C to 60C
Humidity: 5% to 95% (non-condensing)
Drop Height: 1.5m
Temp. Test: 30 minutes for high temp, 30 minutes for low temp.,
High Temp.: 60C
Low Temp.: -20C

Επιπλέον πληροφορίες

Βάρος 2 kg
