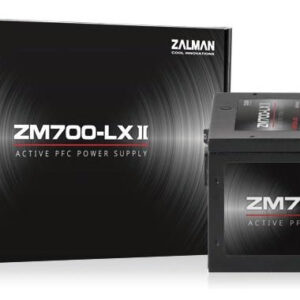

ZALMAN τροφοδοτικό ZM700-LXII, 700W, Active PFC

Περιγραφή

-Dual Forward swtching circuit design for stability
-Two Capasitors for stability and relability
-Dual +12VDC output design for stabilized voltage supply
-Bult in Over voltage , over current , under current , short circuit Fuctions
-Meets ErP 2016 Lot6 EU Standby power standards standby power lower than 1w

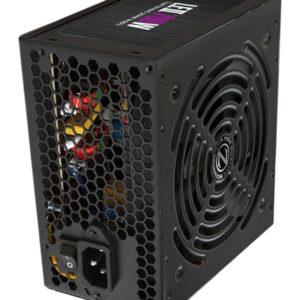

-Equipped with 120mm Quiet Fan with excellent cooling perfomance

Τεχνικά Χαρακτηριστικά:
AC Input Range: Voltage: 220
or 230VAC  Frequency: 50 ~ 60Hz ± 3
AC Input Current(Rated)
Voltage: 200~ 230VAC
Current: 6A

Type: Active PFC
Power Factor: Max 50%
Inrush Current
Limit(@ Cold start at 25°C): 220VAC-230VAC Max 100A
Efficiency:
Max 86% @ 230VAC, Typical load
DC Output Voltage
Regulations
Vout Regulation Range
+3.3VDC ±5%
+3.14 ~ +3.47V
+5VDC ±5% +4.75 ~ +5.25V
+12VDC ±5%
+11.4 ~ +12.6V
-12VDC ±10% -10.8 ~ -13.0V
+5VSB ±5%
+4.75 ~ +5.25V
DC Output Ripple & Noise
Vout Standard
Range
+3.3VDC 50mV
+5VDC 50mV
+12VDC 120mV
-12VDC 120mV
+5VSB 50mV
Temperature
Operation
temperature: 0 ~ 40°C
Storage temperature: -20 ~
70°C
Protection Features: Under Voltage(UVP), Short
Circuit(SCP), Over Power(OPP), Over Current (OCP), Over
Voltage(OVP)
Dimensions: 140(L) x 150(W) x 86(H) mm
